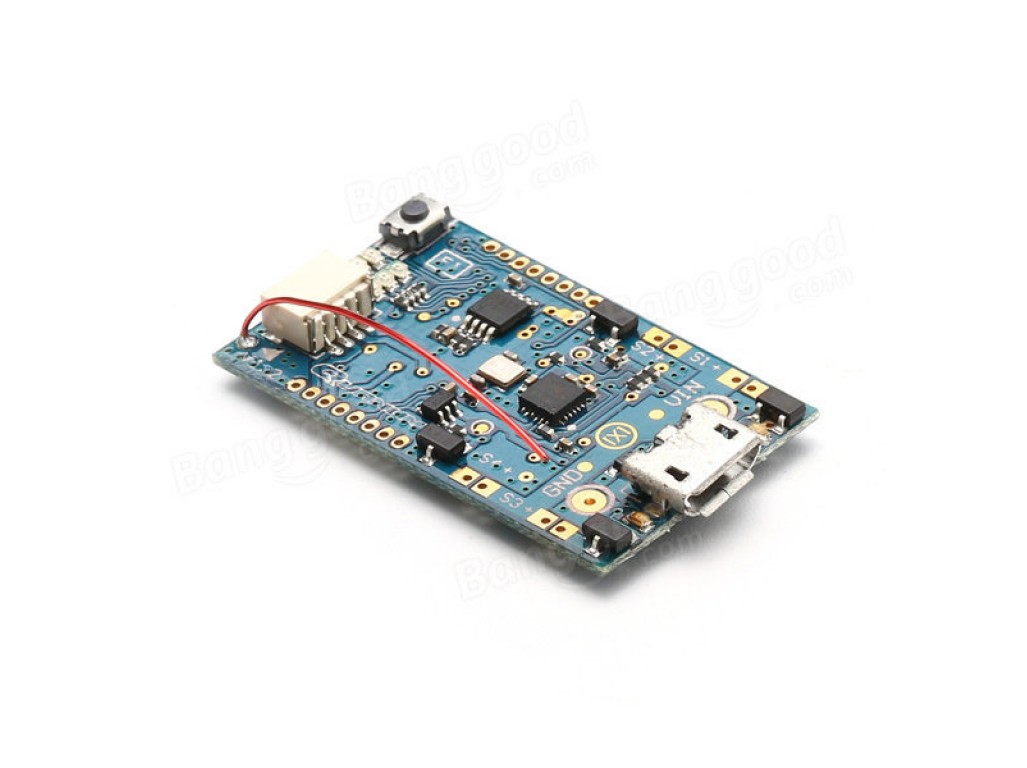

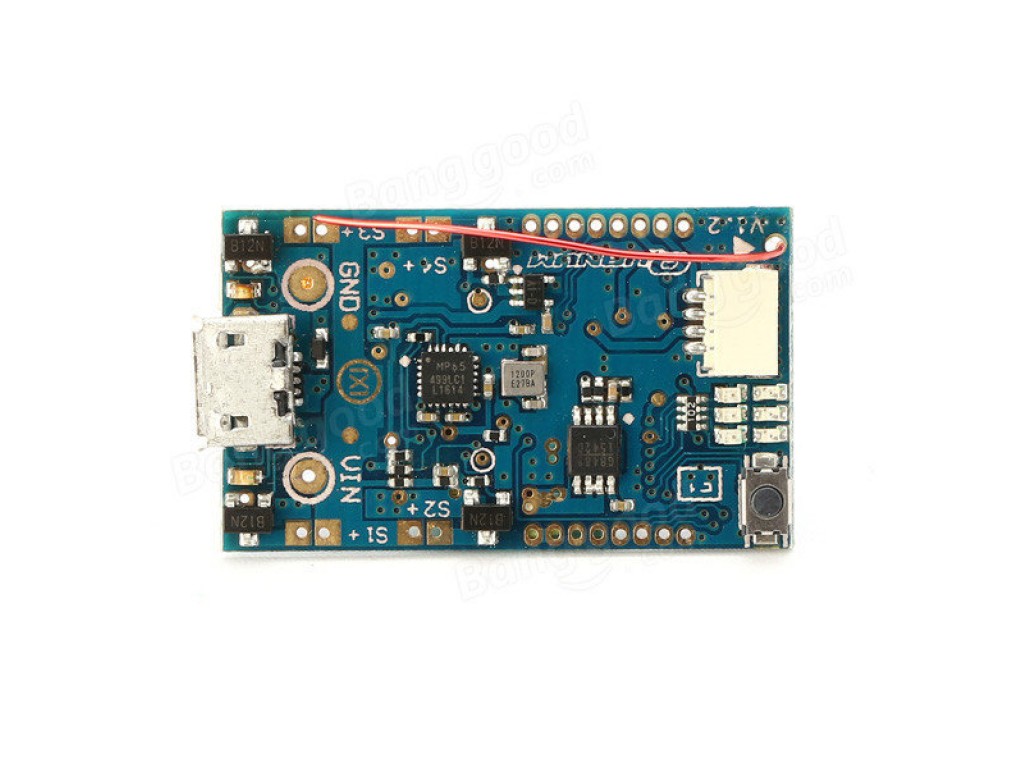

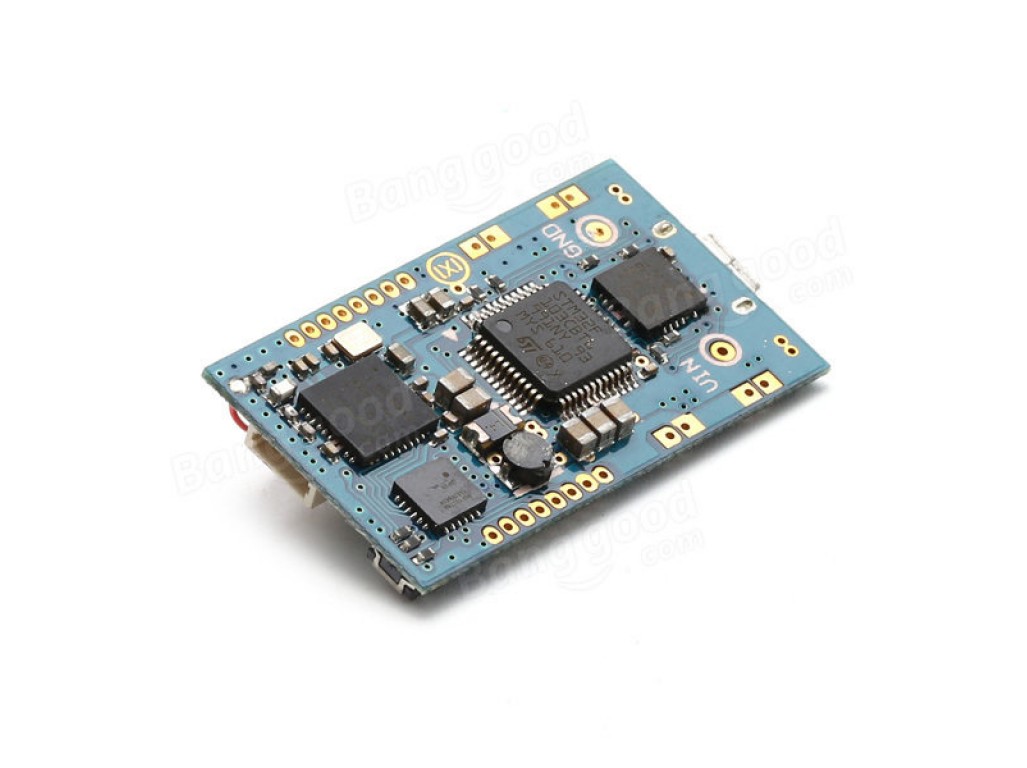

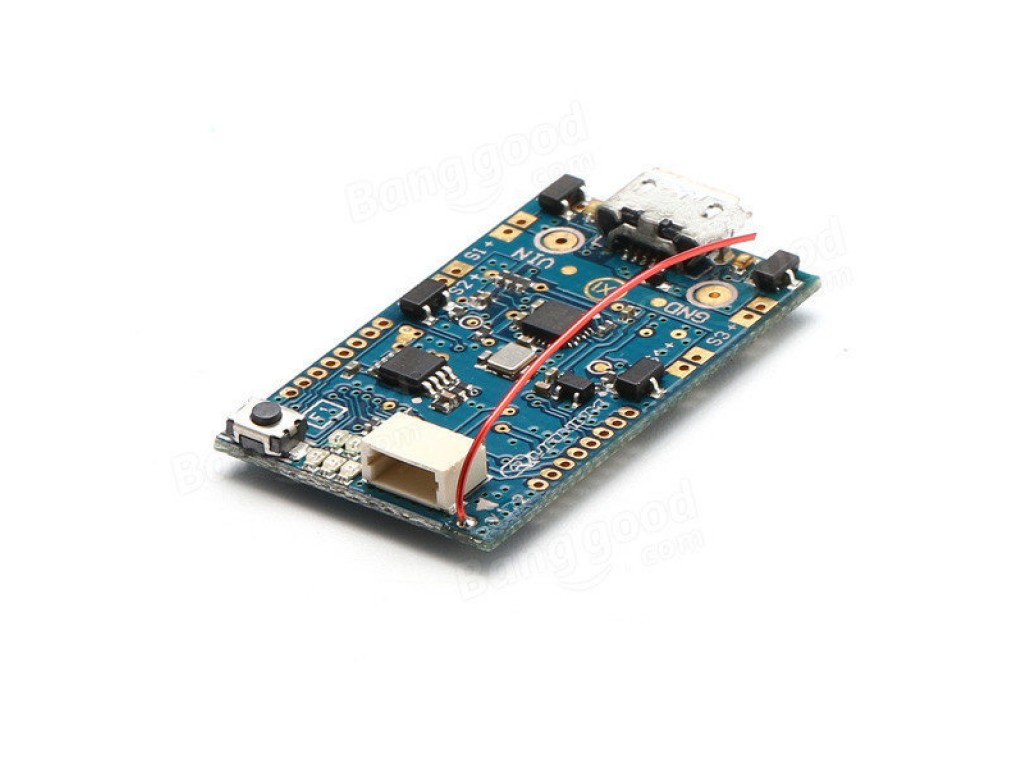

Micro Scisky 32bits Brushed Flight Control Board Based On Naze 32 For Quadcopters
Typical use:
Description:

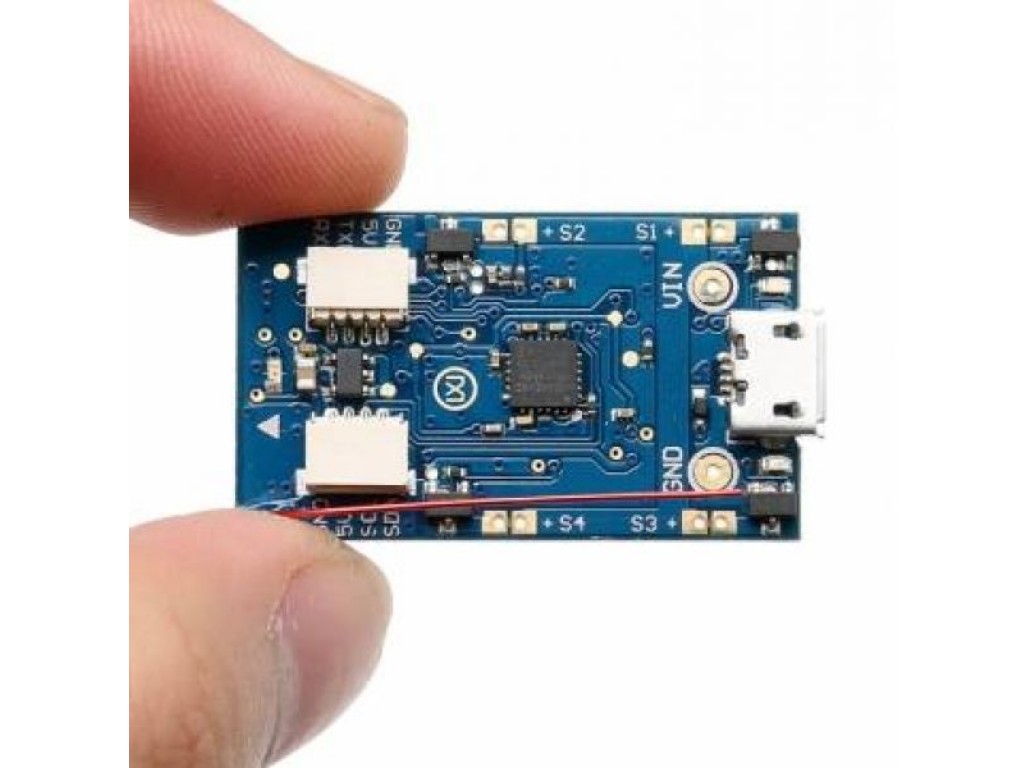

Size: 20.0*33.5*6.0mm (not including the USB protruding part)
Weight:2.5g (including DSMX/DSM2 compatible 7CH receiver by serial port output
Frequency for driving motor:2000 (the frequency can be set up by user, max frequency can be 32K)
Brushed ESC: continuous working current is 4.2A, max current is 6A(5S);
Feature:
Integrated with DCDC voltage booster circuit( output 5.0V/500Ma), it can supply power for other device through IIC and UART port;
The hardware of the FC is based on Naze 32, firmware is cleanflight Naze V1.9.0 and V1.8.1.
Noting:
It will enters binding mode only after powered of 10 seconds automatically, you need to try to get transmitter closer to the board,
something like 5cm will be better.
No binding button on the board.
For firmware flash:
If there is a mistake happened when the firmware was flashing.
Please soldering the cable like the following:
please flash firmware by Flash Loader Demo, after that, please remove the soldered cable.
Then you can flash the latest firmware or other version firmware through Cleanflight GUI.
About the integrated receiver setting:
Receiver Mode: Pls do choose RX_PPM
How to set up brushed ESC mode after the firmware is flashed:
-Set
MOTOR_PWM_RATE parameter >2000 but<32000, the details are the following:
-Under CLI order enters “set motor_pwm_rate=2000”, then click “enter”, then input ”save” and click “enter” again.
So you can set our 32 FC to brushed ESC mode after the firmware is flashed
(
note:2000 means the signal frequency for controlling the brushed motor is 2KHz, the maximum you can set is 32000, that is 32KHz)
The following parts are suitable for this flight control board: (not included)
Frame Kit:
120mm Carbon Fiber Frame kit
90mm Carbon Fiber Frame Kit
CF-02 90mm X Rotor Frame Kit
120mm DIY Frame Kit 2mm Thickness
122mm DIY Micro Mini PCB Frame Kit
Propeller:
Eachine 75mm Blade Propeller
Eachine 75mm Propeller with 7x20mm Coreless Motor
Motor:
Chaoli CL 820 8.5x20mm Coreless Motor
Package Include:
1 x 32bits Brushed Flight Control Board
