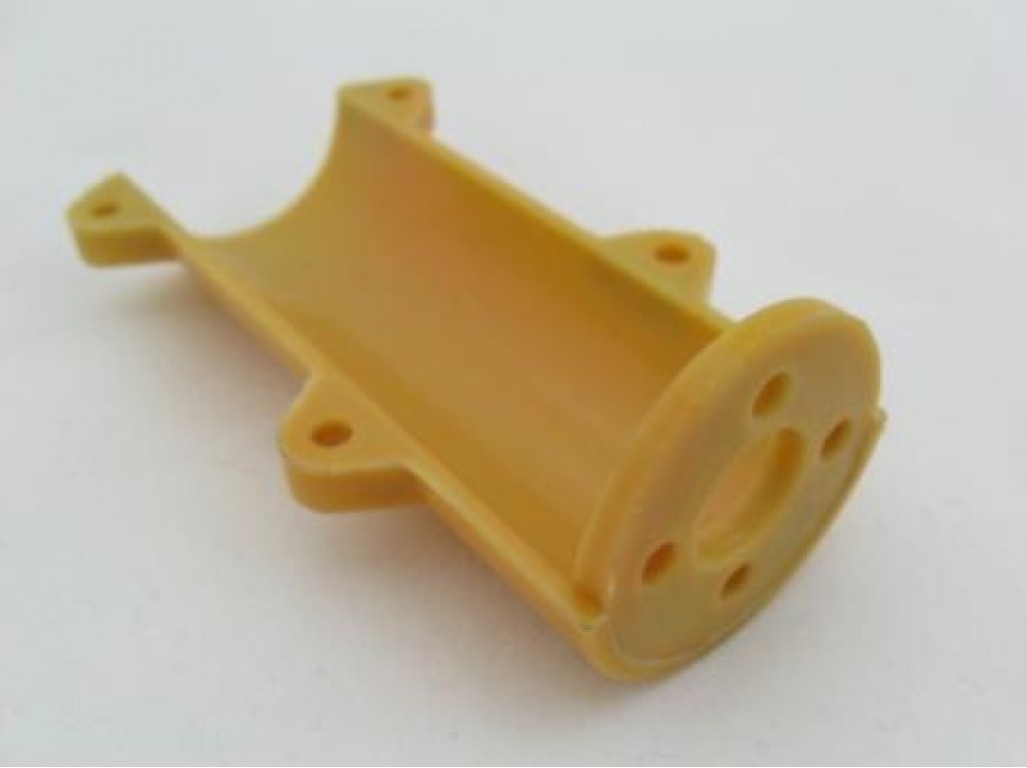

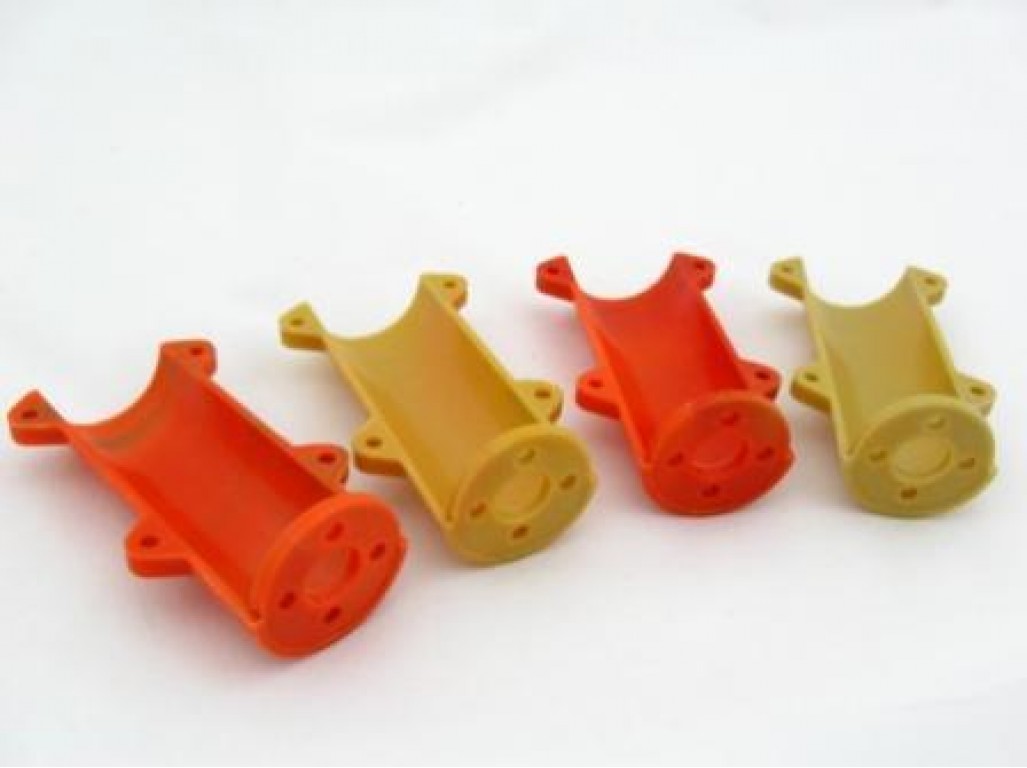

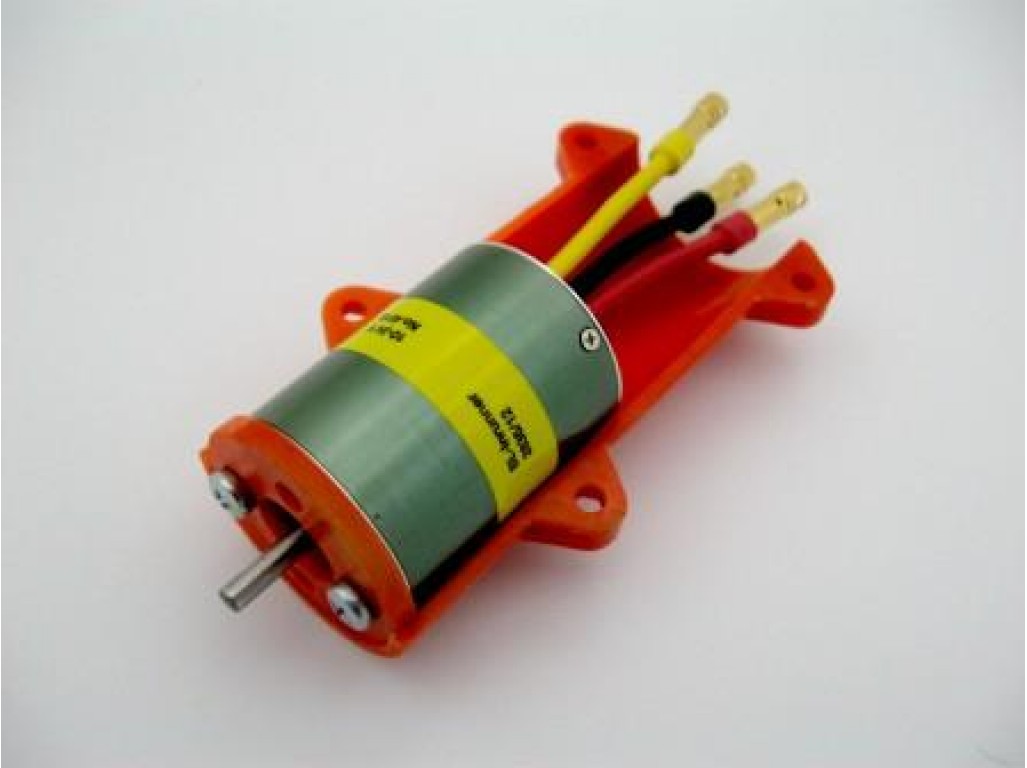

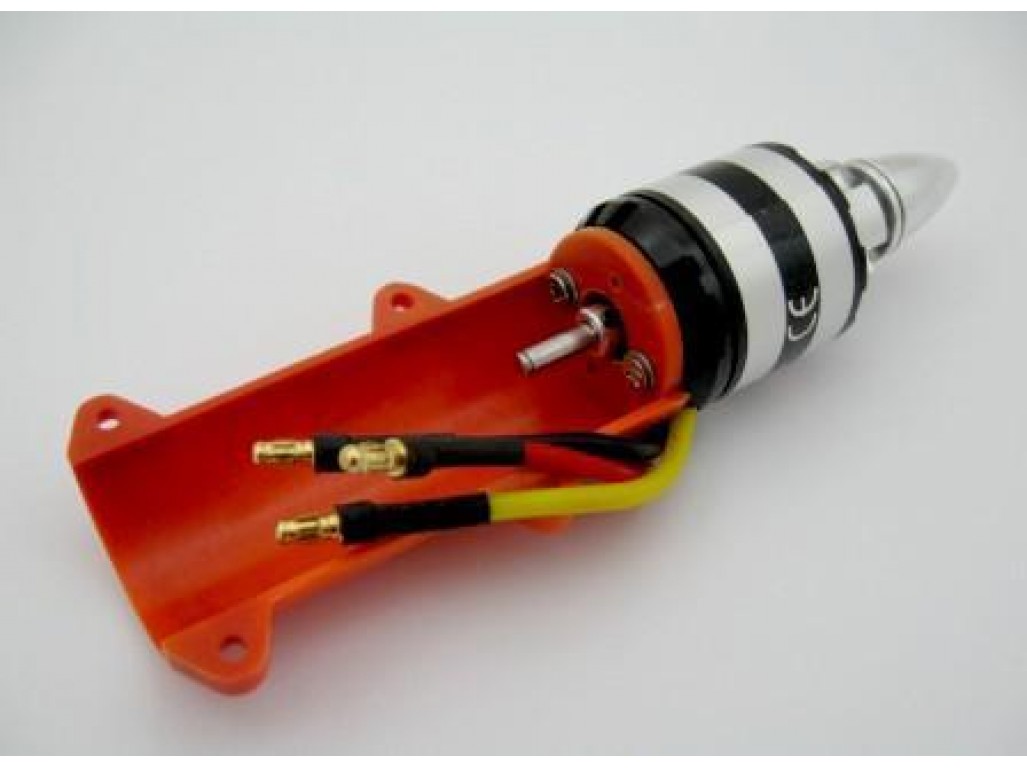

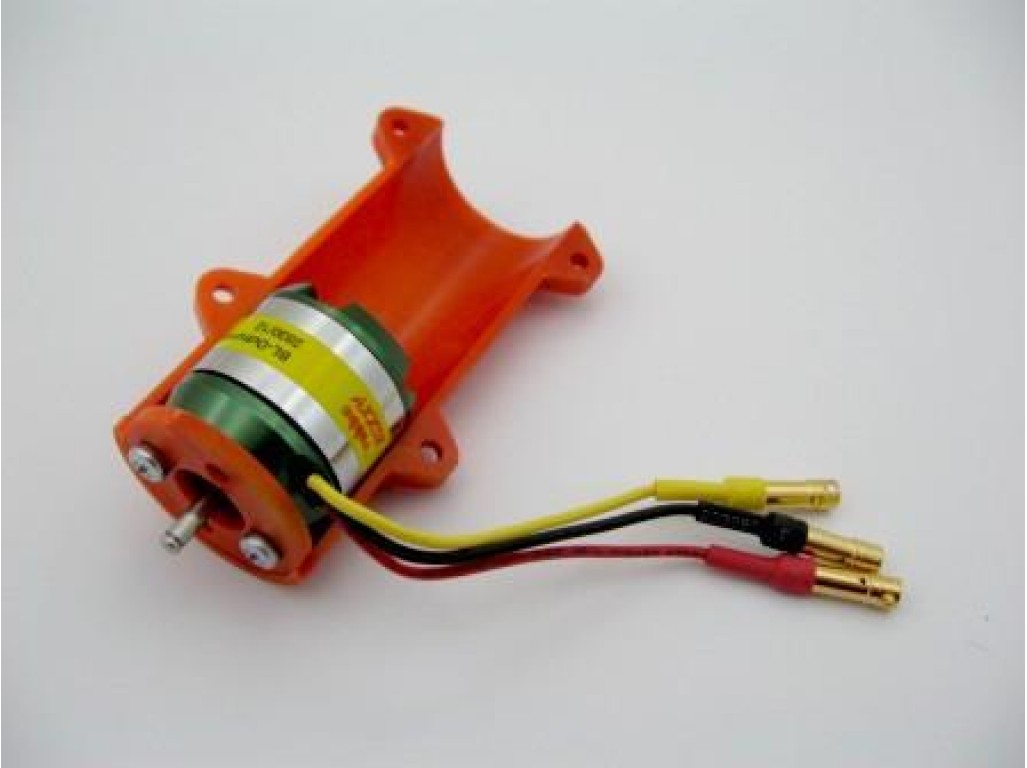

Designed and developed for fast mounting, easy and accurate to the various inrunner and outrunner brushless electric motors, with a maximum diameter of 28 mm (where fitted inside) or higher (if mounted outside).
This motor mount assures from its construction, the needed angle on one axis to compensate motor torque.
Made of glass fiber reinforced plastic (GRP) - for a good mechanical and thermal resistance.
It can be mounted with four M3x10 screws or by gluing with Epoxy or polyurethane adhesive.
Specifications:
Panel dimensions:
- Outer diameter: 32 mm
- Inner diameter: 11 mm
- Motor mounting holes diameter: 3.4 mm
- Distance between motor fixing holes: 19 mm
Other dimensions:
- Distance between motor mount fixing holes: 46 mm
- Distance between fixing holes across the motor mount: 39 mm
Overall length: 80 mm
Weight: 15 g
