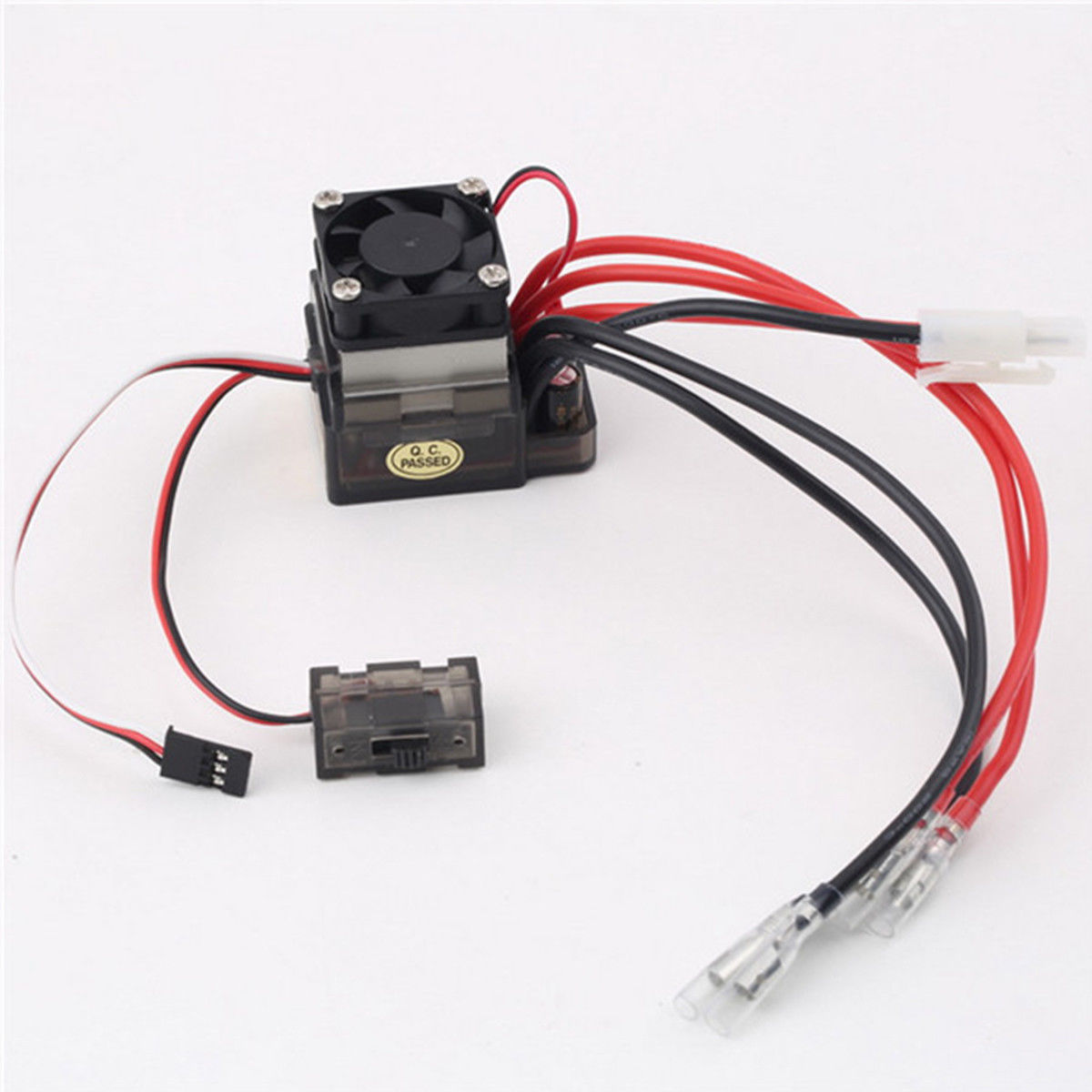

320A 7.2V-16V High Voltage Brush ESC Speed Controller For 1/10

320A 7.2V-16V High Voltage Brush ESC Speed Controller For 1/10
Šifra proizvoda: RCS303093771942
Dostupnost: Nije na stanju
Cena: 16,00€
Količina:

Features:
 * Power range:7.2V-16V
 * Input voltage(advise):6-12 cells NiMH/NiCd or 2-4 cells LiPo.
 * Weight:60g (including connectors and switches)
 * BEC:5.6V 2A
 * Output current:forward 320A
 * Out of control for protection
 * Low voltage protection
 * Over-voltage protection ; With heat sink
 * For 540 dual motor or single motor
 * Operating system : forward, reverse, and brake
 * With this power transfer would not have to worry about slow tram Motor Boats only need to replace the original power transfer

Operational Guidelines:

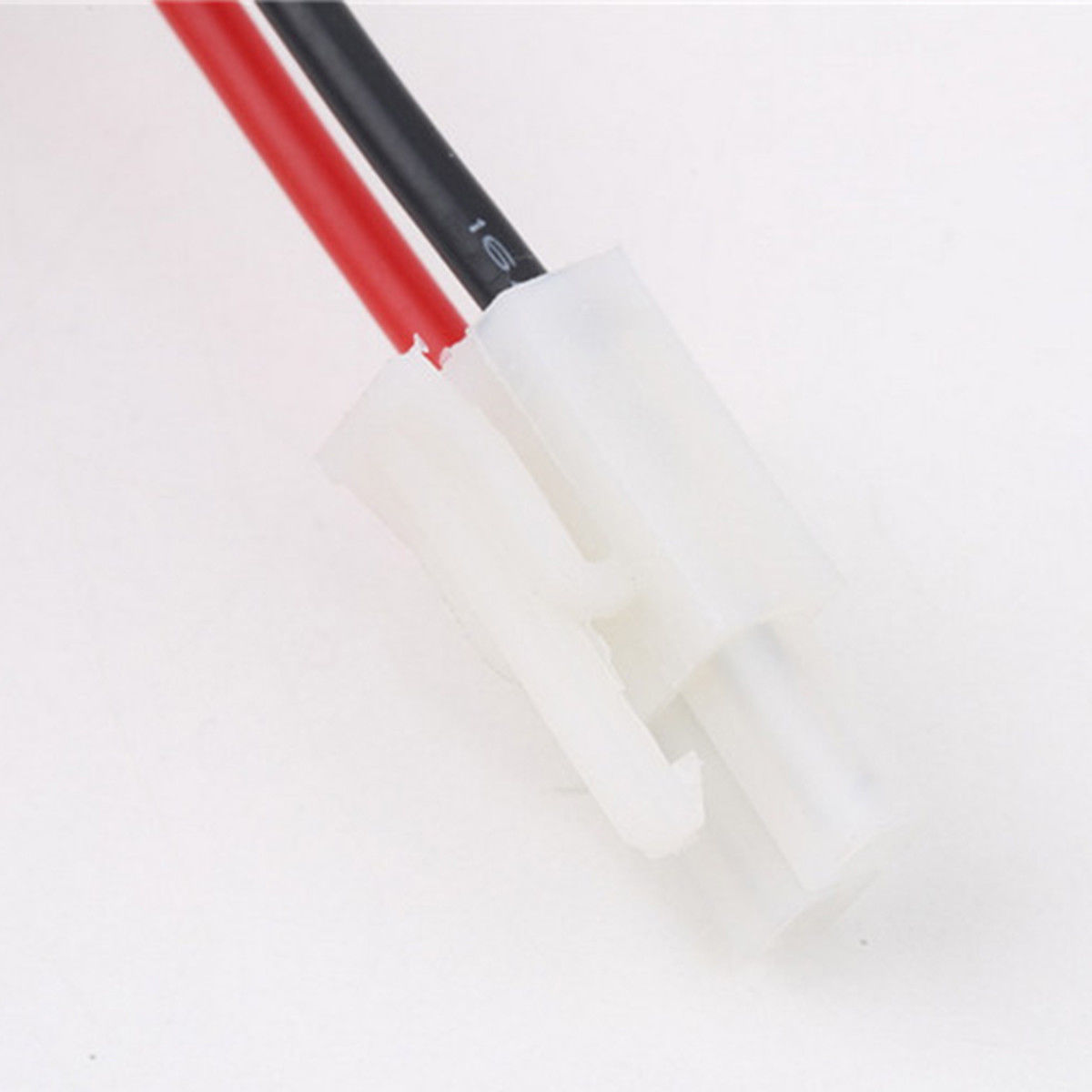

 * 1.the right and a power supply battery connection on both ends of the wiring board the red
 * line for positive, black, compared with negative. (Or standard DC battery connection plug Daejeon
 * male plug / T-plug / banana plug)

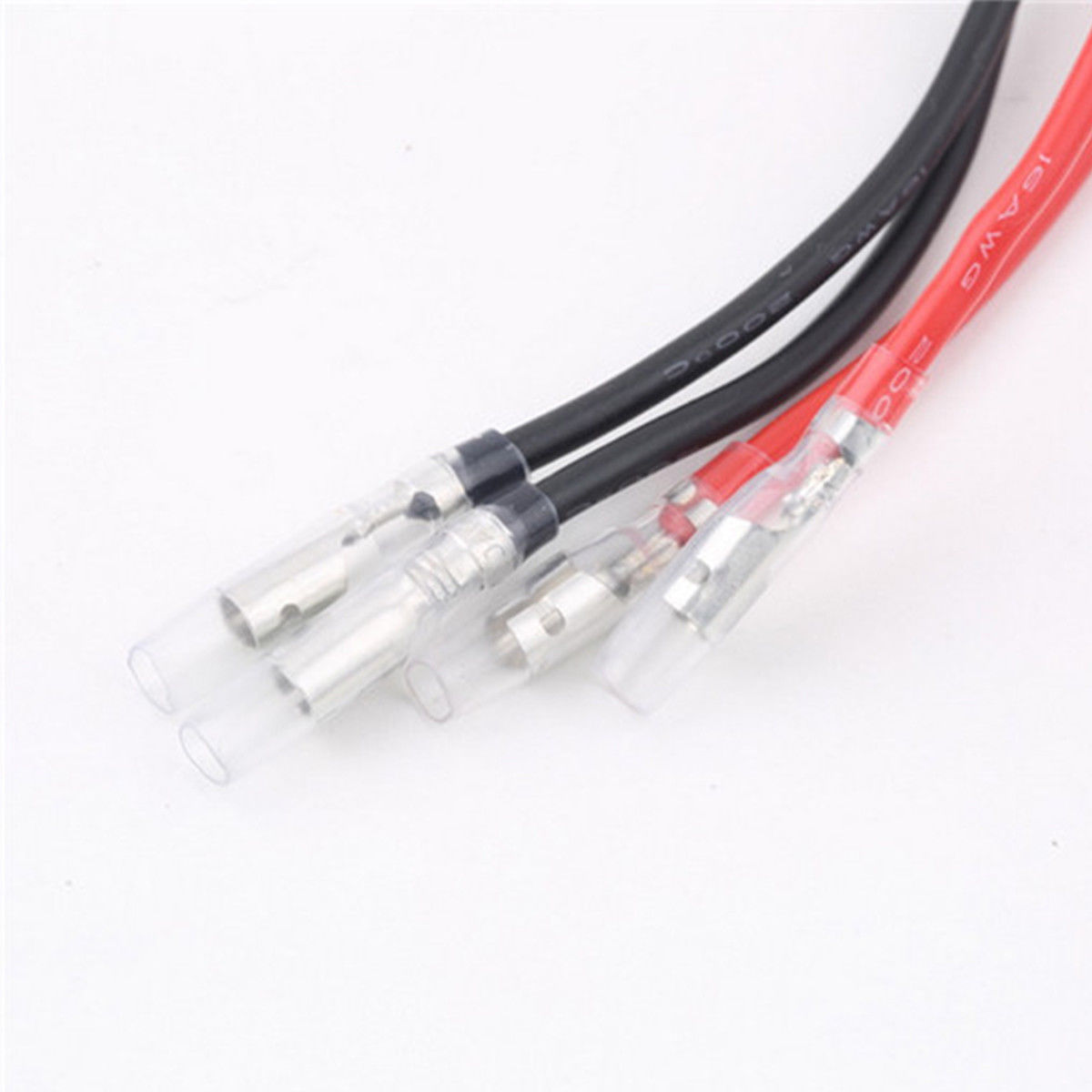

 * 2.ESC output red and black wire are connected to the red and black lines of the car 540 motor.

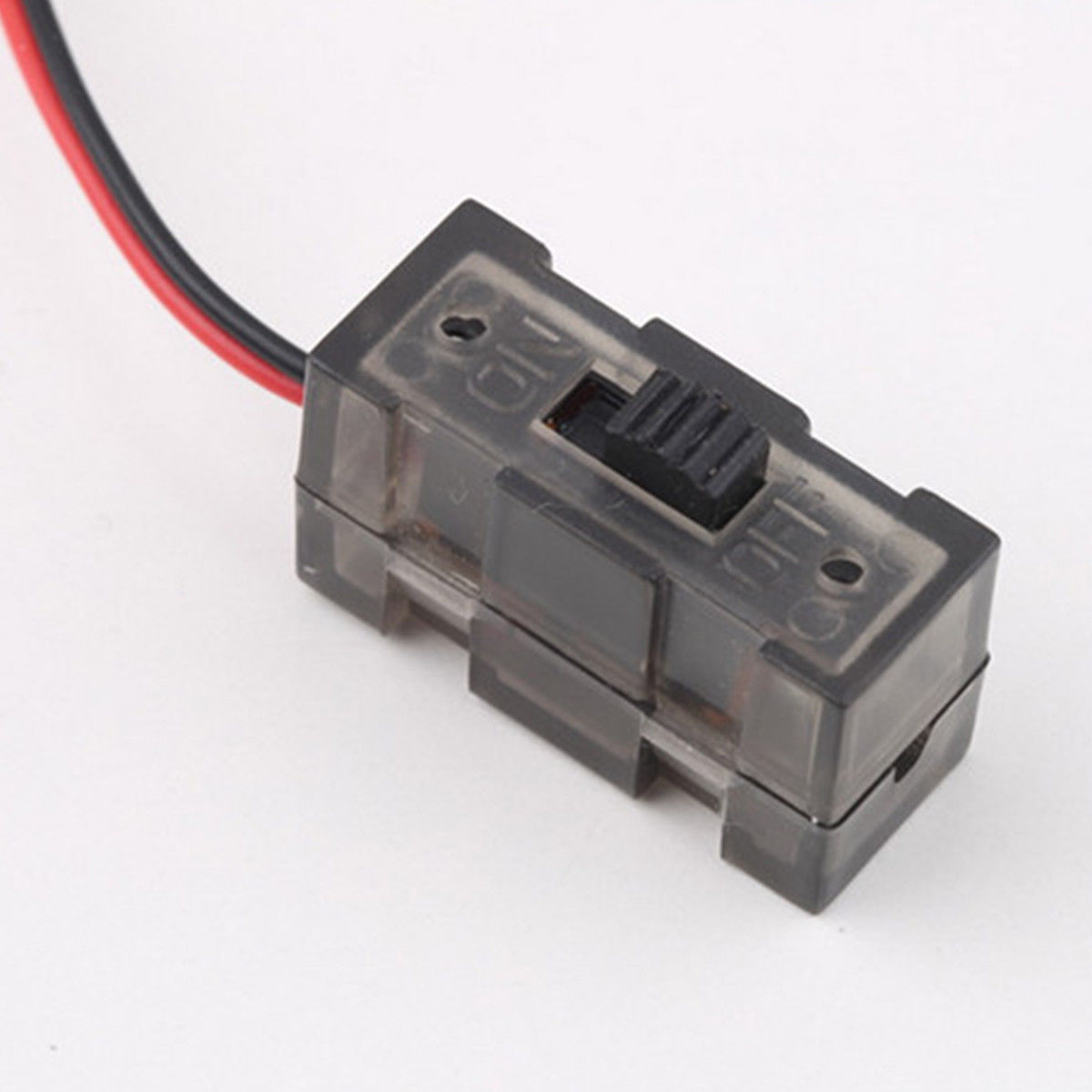

 * 3.open the ESC power switch, if no signal input, motor will send a beep ~ beep ~ beep \"alarm sound.
 * Turn the transmitter power signal injection will issue the voice of the duo ~ ~ Mi \", has been connected
 * to prove the transmitted signal and receiving the electrical and mechanical tone.

Specifications:
 * Net weight:92 g
 * Color:Black+Red
 * Application: Car Truck Buggy Boat

Package Included:
 * 1 x 320A Brushed ESC
